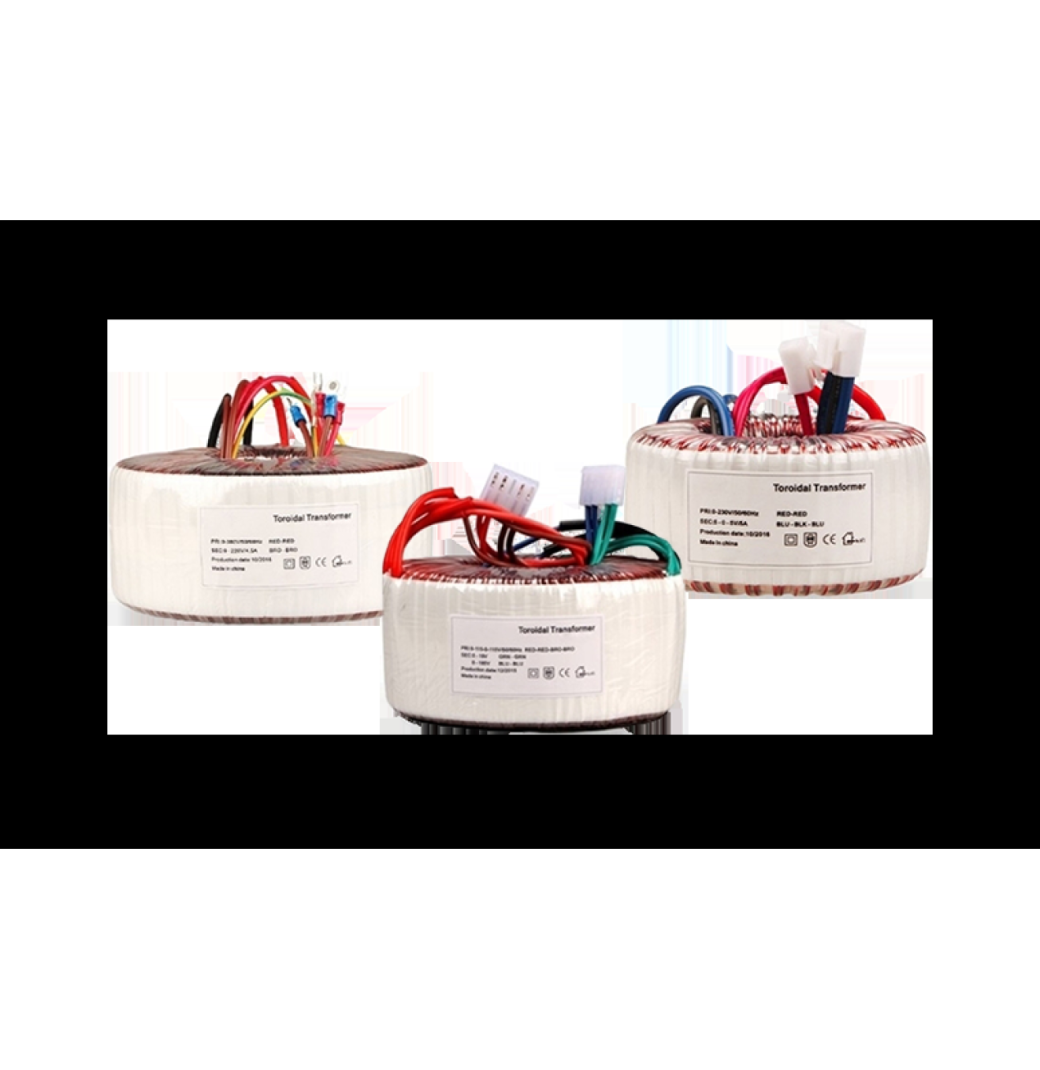

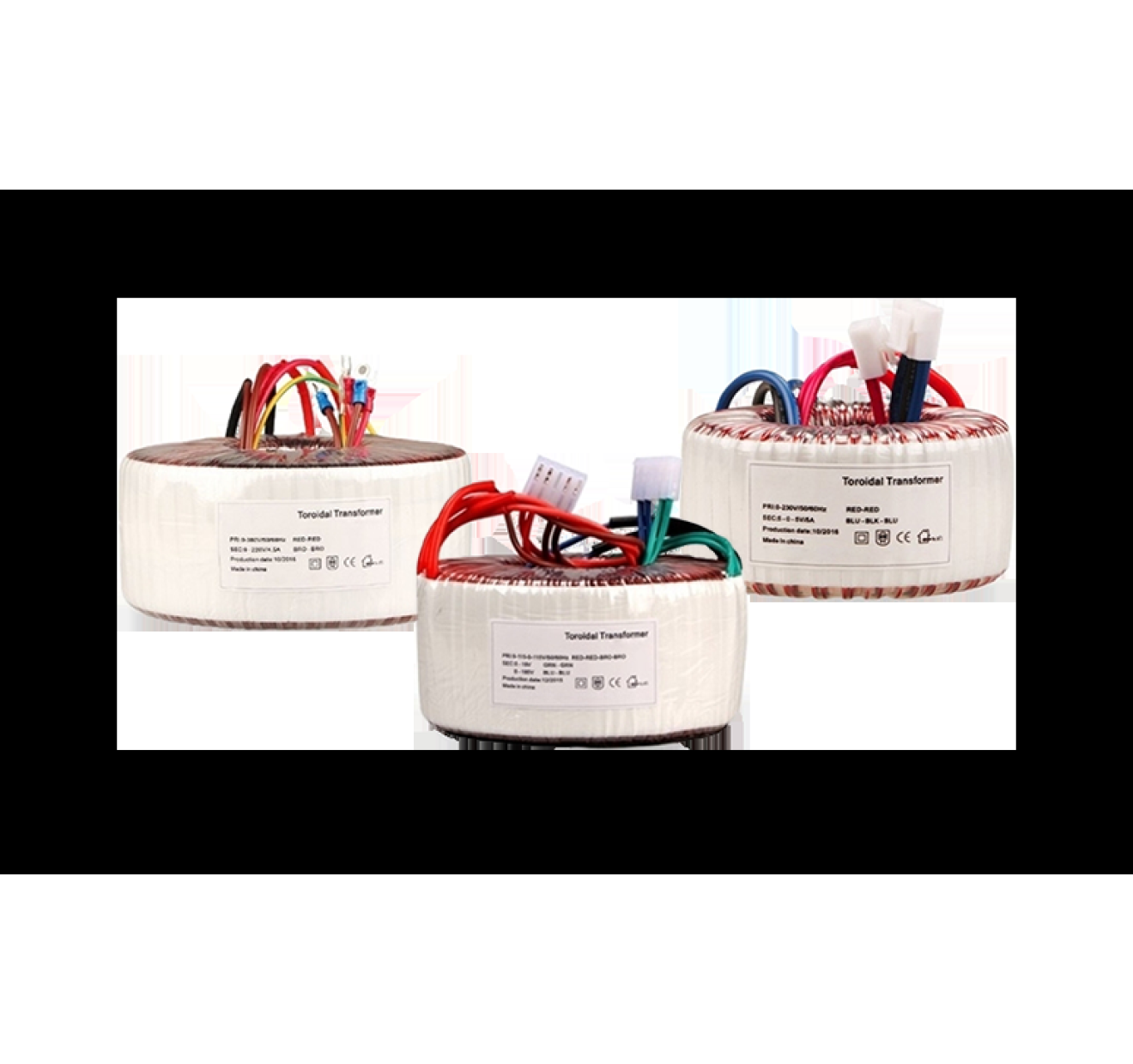

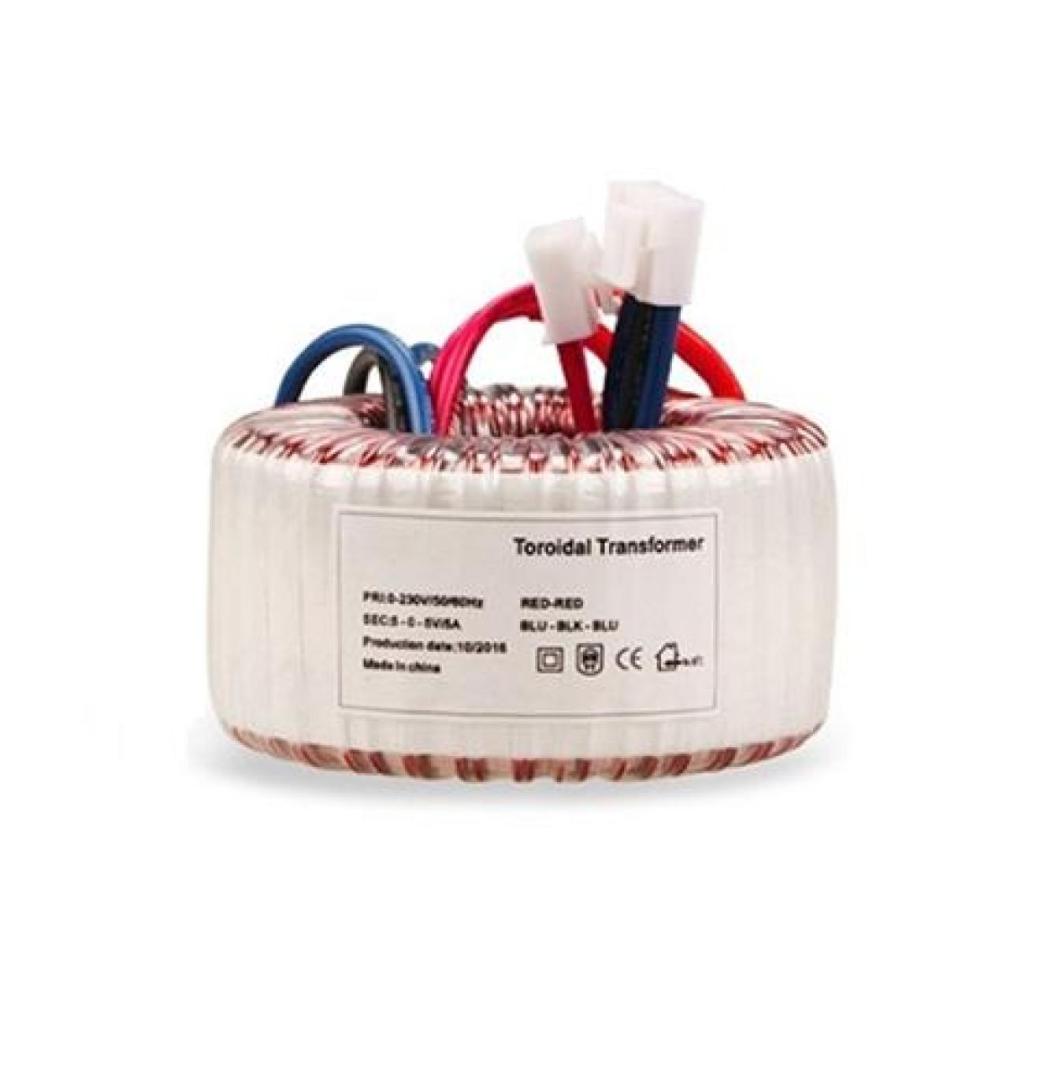

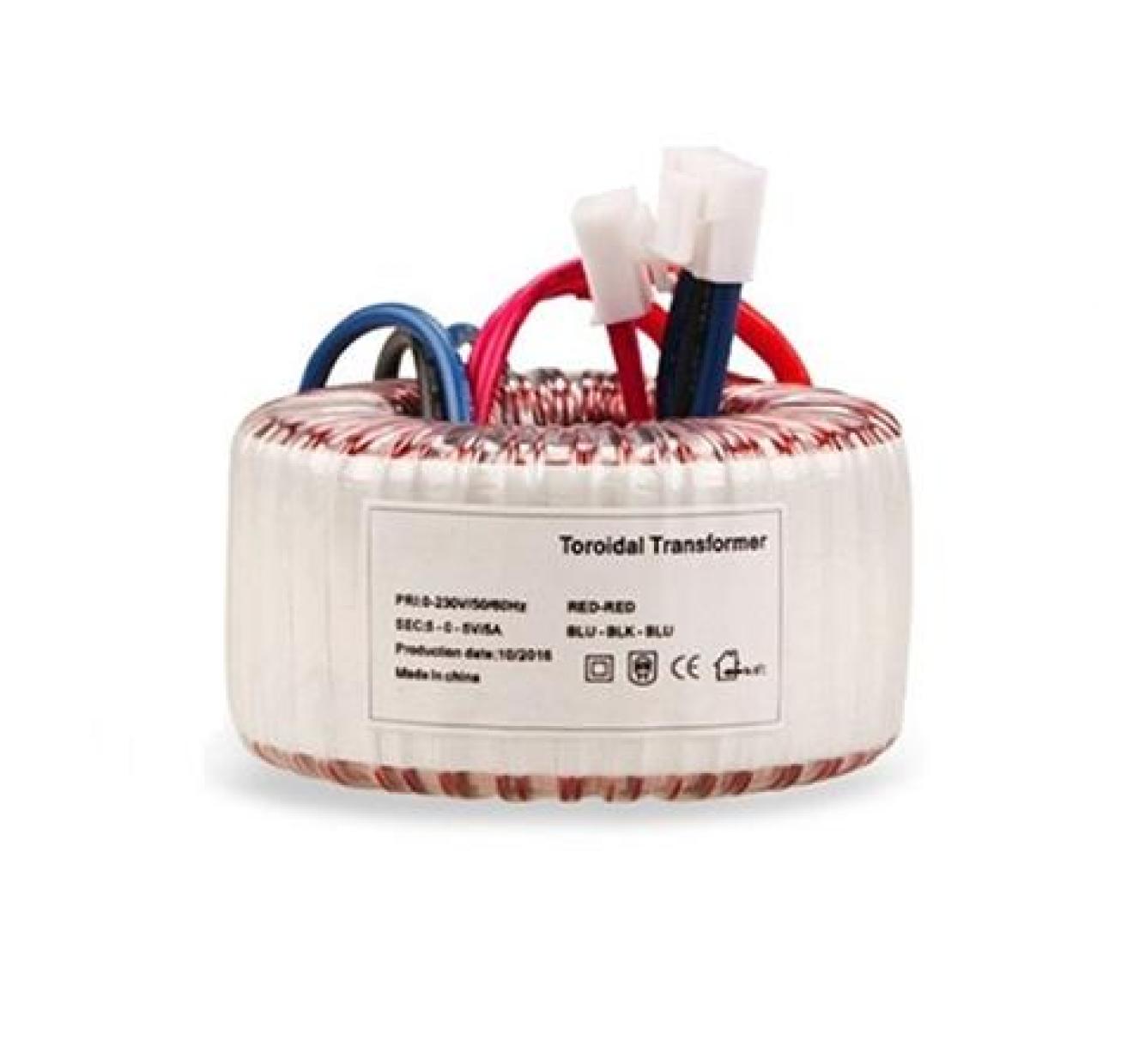

Toroidal Transformers

Toroidal transformers are a distinct type of electrical transformer characterized by their donut-shaped (toroid) magnetic core, typically made from tightly wound strips of silicon steel or ferrite materials. This core design differs sharply from the traditional laminated rectangular cores used in most standard transformers, and it is this unique toroidal structure that gives the device its key performance advantages. The core’s circular shape is not just a design choice—when paired with carefully wound primary and secondary windings that encircle the entire circumference of the core, it creates a more efficient magnetic circuit with minimal energy loss.

One of the most notable benefits of toroidal transformers is their high electrical efficiency. Unlike rectangular cores, which have air gaps and sharp corners that disrupt magnetic flux, the toroidal core’s continuous, closed-loop shape allows magnetic flux to flow smoothly and uniformly throughout the core material. This reduces two major sources of energy loss: eddy currents (circulating currents within the core that generate heat) and hysteresis (energy lost as the magnetic field reverses direction with AC power). As a result, toroidal transformers often achieve efficiency ratings of 95% or higher, even at lower load levels, making them ideal for applications where energy conservation is critical—such as in audio equipment, medical devices, and renewable energy systems (like solar inverters) where wasted energy translates to reduced performance or higher operating costs.

Another key advantage is their compact size and lightweight construction relative to their power output. The toroidal core’s efficient use of magnetic material means that a toroidal transformer can deliver the same power rating as a standard rectangular-core transformer while occupying significantly less space and weighing much less. For example, a 500 VA toroidal transformer might be half the size and weight of a conventional 500 VA transformer. This compactness is highly valued in applications where space is limited, such as in desktop computers, home theater systems, portable medical monitors, and automotive electronics, where every inch of space and ounce of weight matters.

Heat dissipation is another aspect to consider, though the toroidal design also aids in this area. The core’s circular shape and the even distribution of windings allow heat to spread uniformly across the transformer’s surface. Many toroidal transformers are housed in metal or plastic casings with ventilation slots, or they are mounted on heat sinks, to further enhance heat transfer. This efficient cooling ensures that the transformer can operate continuously at full load without overheating, extending its lifespan and maintaining consistent performance.

Overall, toroidal transformers represent a significant advancement in transformer design, leveraging their unique toroidal core to deliver superior efficiency, compactness, low interference, and quiet operation. While they may come with a higher initial cost, their performance benefits and versatility make them a preferred choice for applications where precision, reliability, and energy efficiency are non-negotiable. As technology continues to demand smaller, more efficient electrical components, the role of toroidal transformers in powering modern devices is only set to grow.
